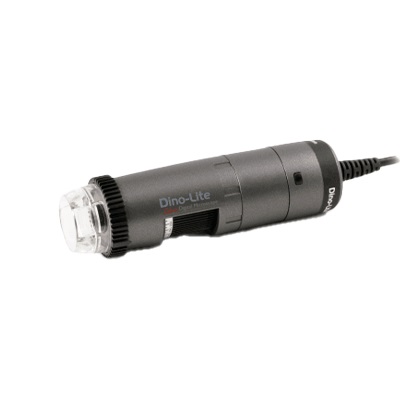

AF4515ZTL
The Dino-Lite AF4515ZTL is part of Long Working Distance (LWD) series and connects to your device via USB. The AF4515ZTL is Wireless-ready, but requires the (optional) WF-20 to make it a fully wireless solution.
Caractristiques
• 1.3 Megapixel Edge sensor • 10-140x magnification • Adjustable polarizer • Automatic Magnification Reading (AMR) • Flexible LED Control (FLC) • Wireless-ready, requires the F-20 adapter (optional)
Pourquoi choisir ce modele ?
Le AF4515ZTL fait partie de la gamme Megaindus concue pour accompagner les equipes industrielles en production quotidienne. Sa conception robuste assure une performance reguliere sans multiplier les operations de maintenance.
Le modele presente est propose a 8 230,00 MAD. Rupture de stock pour garantir un approvisionnement fiable et rapide.
Megaindus accompagne chaque projet : analyse, parametrage, mise en service et transfert de competences. Vous beneficiez ainsi d'un referent dedie et d'une documentation claire pour securiser l'exploitation du AF4515ZTL.
Points cles a retenir
- Specification : Lighting
- Light/ LED type White : Number of LEDs 8
- LED on/off switchable : Yes
- Infrared filter IR cut-filter >650 nm : Diffuser available Yes (N3C-D included)
- Emission filter No : Polarizer Yes, linear
- Optics : Magnification 10-140x
Ce tableau resume les principaux parametres du AF4515ZTL et facilite la comparaison avec d'autres references disponibles.
| Caract\u00E9ristique | AF4515ZTL |
|---|---|
| Specification | Lighting |
| Light/ LED type White | Number of LEDs 8 |
| LED on/off switchable | Yes |
| Infrared filter IR cut-filter >650 nm | Diffuser available Yes (N3C-D included) |
| Emission filter No | Polarizer Yes, linear |
| Optics | Magnification 10-140x |
| Macro zoom No | Working distance Long |
| Lens type Glass with anti-reflection coating | Sensor |
| Sensor type CMOS | Resolution 1.3 Megapixel (1280x1024) |
| Maximum frame rate 30 fps | Compatibility |
| Interface USB 2.0 | Operating system Windows 7, 8, 10 & 11, MacOS 10.12 and up |
| Included software DinoCapture 2.0 (Windows), DinoXcope (Mac | OS) |
| Supported image formats | (Windows) |
| BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, | PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats | (Windows) |
| WMV, FLV, SWF | Supported image formats (MacOS) |
| JPEG, PNG | Supported video formats (MacOS) |
| MOV | Imaging standards DirectShow, UVC |
| Wifi Wireless-ready, requires the WF-20 adapter | (optional) |
| Housing | Housing material Composite/ plastic housing |
| Magnification lock Yes | Dimensions 11.4cm (L) x 3.3cm (D) |
| Weight 111g | Cable length 1.8m |
| Features | Special feature Automatic Magnification Reading (AMR), |
| Flexible LED Control (FLC) | Measurement Yes |
| Calibration Yes | Microtouch sensor Yes |
| ESD safe No | Information |
| Package contents Microscope, carry pouch, software CD, calibration | target, user manual, N3C-O- Open cap, N3C-CClosed cap, N3C-D- Diffuser cap, N3C-EExtension cap, N3C-L- Long cap, N3C-S- Side |
| light cap | Warranty information 2 years European warranty |
