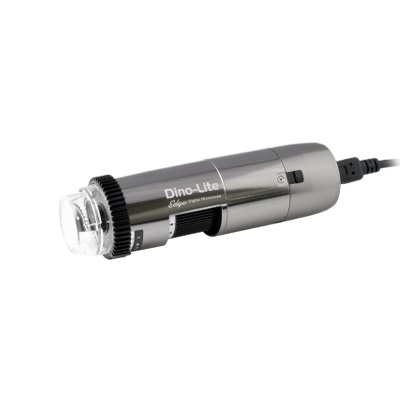

AF7115MZT
AF7115MZT is a 5-megapixel digital microscope offering high-resolution imaging with a 20x ~ 220x magnification. This model has Flexible LED Control (FLC) for maximizing lighting adjustability and a polarizer for reducing unwanted reflections. AF7115MZT is compatible with WF-20, a Wi-Fi streamer
Caractristiques
• 5 Megapixel Edge sensor • 20-220x magnification • Integrated polarizer • Aluminum housing • Flexible LED Control (FLC) • Extensive measurement functions • Calibration • Exchangeable front caps • Wireless ready
Pourquoi choisir ce modele ?
Le AF7115MZT fait partie de la gamme Megaindus concue pour accompagner les equipes industrielles en production quotidienne. Sa conception robuste assure une performance reguliere sans multiplier les operations de maintenance.
Le modele presente est propose a 11 000,00 MAD. Rupture de stock pour garantir un approvisionnement fiable et rapide.
Megaindus accompagne chaque projet : analyse, parametrage, mise en service et transfert de competences. Vous beneficiez ainsi d'un referent dedie et d'une documentation claire pour securiser l'exploitation du AF7115MZT.
Points cles a retenir
- Specification : Lighting
- Light/ LED type White : Number of LEDs 8
- LED on/off switchable : Yes
- Infrared filter IR cut-filter >650 nm : Diffuser available Yes (N3C-D included)
- Emission filter No : Polarizer Yes, linear
- Optics : Magnification 20-220x
Ce tableau resume les principaux parametres du AF7115MZT et facilite la comparaison avec d'autres references disponibles.
| Caract\u00E9ristique | AF7115MZT |
|---|---|
| Specification | Lighting |
| Light/ LED type White | Number of LEDs 8 |
| LED on/off switchable | Yes |
| Infrared filter IR cut-filter >650 nm | Diffuser available Yes (N3C-D included) |
| Emission filter No | Polarizer Yes, linear |
| Optics | Magnification 20-220x |
| Macro zoom No | Working distance Standard |
| Lens type Glass with anti-reflection coating | Sensor |
| Sensor type CMOS | Resolution 5 Megapixel (2592x1944) |
| Maximum frame rate 30 fps | Compatibility |
| Interface USB 2.0 | Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up |
| Included software DinoCapture 2.0 (Windows), DinoXcope (Mac | OS) |
| Supported image formats | (Windows) |
| BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, | PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats | (Windows) |
| WMV, FLV, SWF | Supported image formats (MacOS) |
| JPEG, PNG | Supported video formats (MacOS) |
| MOV (max 1.3MP) | Imaging standards DirectShow, UVC |
| Wifi Wireless-ready, requires the WF-20 (optional) | Housing |
| Housing material Metal housing | Dimensions 11.5cm (L) x 3.4cm (D) |
| Weight 97gr | Cable length 1.8m |
| Features | Special feature Flexible LED Control (FLC) |
| Measurement Yes | Calibration Yes |
| Microtouch sensor Yes | ESD safe Yes |
| Information | Package contents Microscope, carry pouch, software CD, calibration |
| target, user manual, N3C-O- Open cap, N3C-CClosed cap, N3C-D- diffuser cap, N3c-extension | cap, N3C-L- Long cap, N3C-S- Side light cap |
| Warranty information 2 years European warranty | Regulatory approval CE, FCC, ROHS |
