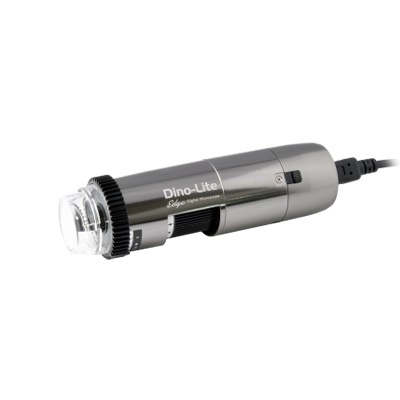

AF7915MZT
Get the detail you need on the go with the Dino-Lite AF7915MZT high-resolution digital microscope. This 5-megapixel handheld digital microscope includes advanced features like EDOF, FLC, AMR, and EDR, offering versatility for accomplishing a wide variety of tasks. AF7915MZT is compatible with the WF-20 Wi-Fi streamer.
Caractristiques
• 5 Megapixel Edge sensor • Extended Depth of Field (EDOF) • Extended Dynamic Range (EDR) • Automatic Magnification Reading (AMR) • Adjustable polarizer • Flexible LED Control (FLC) • Wireless Ready
Pourquoi choisir ce modele ?
Le AF7915MZT fait partie de la gamme Megaindus concue pour accompagner les equipes industrielles en production quotidienne. Sa conception robuste assure une performance reguliere sans multiplier les operations de maintenance.
Le modele presente est propose a 13 750,00 MAD. Rupture de stock pour garantir un approvisionnement fiable et rapide.
Megaindus accompagne chaque projet : analyse, parametrage, mise en service et transfert de competences. Vous beneficiez ainsi d'un referent dedie et d'une documentation claire pour securiser l'exploitation du AF7915MZT.
Points cles a retenir
- Specification : Lighting
- Light/ LED type White : Number of LEDs 8
- LED on/off switchable : Yes
- Infrared filter IR cut-filter >650 nm : Diffuser available Yes (N3C-D included)
- Emission filter No : Polarizer Yes, linear
- Optics : Magnification 10-220x
Ce tableau resume les principaux parametres du AF7915MZT et facilite la comparaison avec d'autres references disponibles.
| Caract\u00E9ristique | AF7915MZT |
|---|---|
| Specification | Lighting |
| Light/ LED type White | Number of LEDs 8 |
| LED on/off switchable | Yes |
| Infrared filter IR cut-filter >650 nm | Diffuser available Yes (N3C-D included) |
| Emission filter No | Polarizer Yes, linear |
| Optics | Magnification 10-220x |
| Macro zoom No | Working distance Standard |
| Lens type Glass with anti-reflection coating | Sensor |
| Sensor type CMOS | Resolution 5 Megapixel (2592x1944) |
| Maximum frame rate 30 fps | Compatibility |
| Interface USB 2.0 | Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up |
| Included software DinoCapture 2.0 (Windows), DinoXcope (Mac | OS) |
| Supported image formats | (Windows) |
| BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, | PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats | (Windows) |
| WMV, FLV, SWF | Supported image formats (MacOS) |
| PNG, JPEG | Supported video formats (MacOS) |
| MOV (max 1.3MP) | Imaging standards DirectShow, UVC |
| Wifi Wireless-ready, requires the WF-20 (optional) | Housing |
| Housing material Metal housing | Magnification lock Yes |
| Dimensions 10.5cm (L) x 3.2cm (D) | Weight 137g |
| Cable length 1.8m | Features |
| Special feature Automatic Magnification Reading (AMR), | Extended Dynamic Range (EDR), Extended Depth |
| of Field (EDOF), Flexible LED Control (FLC). | Measurement Yes |
| Calibration Yes | Microtouch sensor Yes |
| ESD safe Yes | Information |
| Package contents Microscope, carry pouch, software CD, calibration | target, user manual, N3C-O- Open cap, N3C-CClosed cap, N3C-D- Diffuser cap, N3C-EExtension cap, N3C-L- Long cap, N3C-S- Side |
| light cap | Warranty information 2 years European warranty |
