AM4013MTL

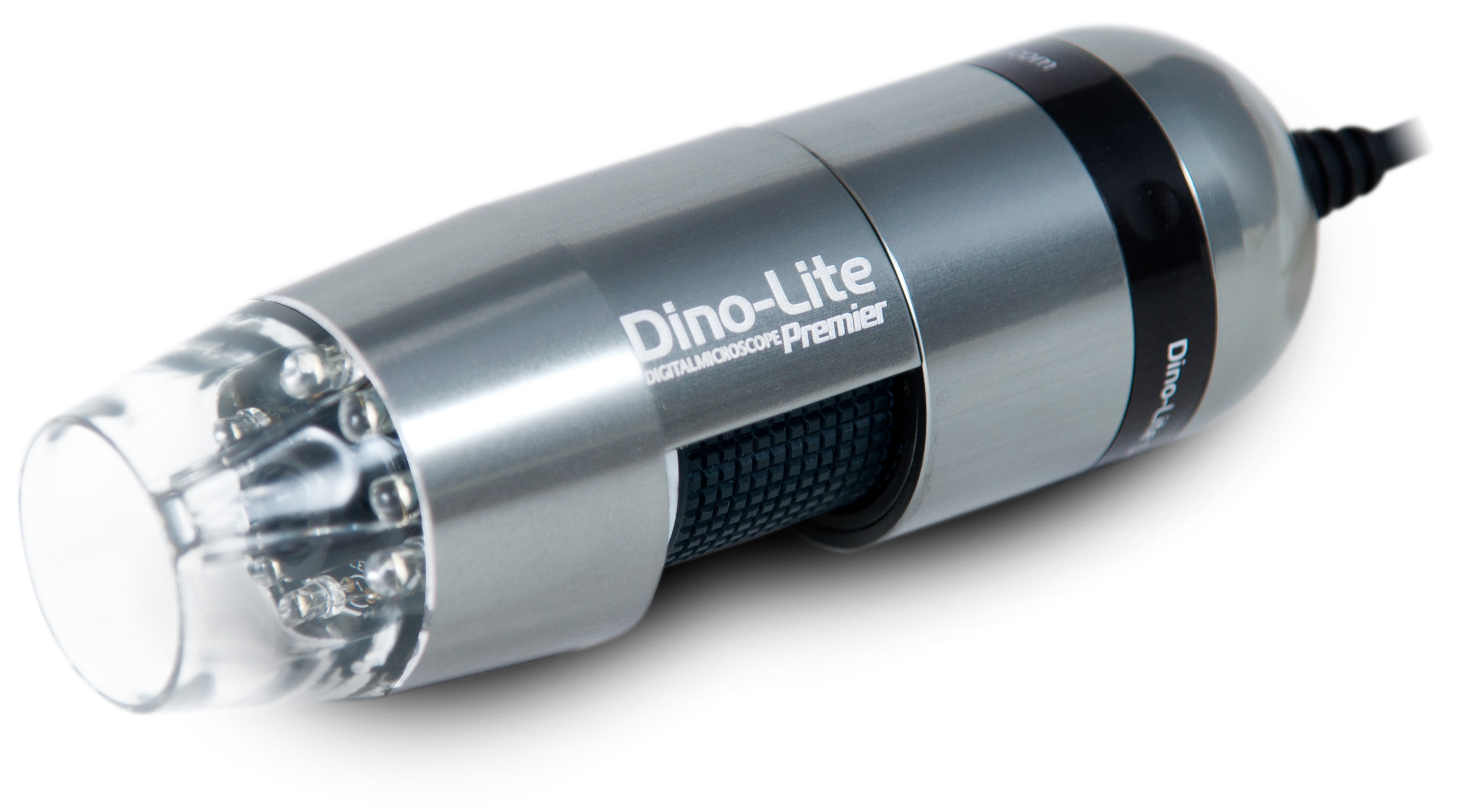

Dino-Lite professional model in aluminium alloy housing and long working distance and Microtouch. The aluminium housing offers enhanced protection and durability and has the best look and feel.
Pourquoi choisir ce modele ?
Le AM4013MTL fait partie de la gamme Megaindus concue pour accompagner les equipes industrielles en production quotidienne. Sa conception robuste assure une performance reguliere sans multiplier les operations de maintenance.
Le modele presente est propose a 6 580,00 MAD. Rupture de stock pour garantir un approvisionnement fiable et rapide.
Megaindus accompagne chaque projet : analyse, parametrage, mise en service et transfert de competences. Vous beneficiez ainsi d'un referent dedie et d'une documentation claire pour securiser l'exploitation du AM4013MTL.
Points cles a retenir
- Specification : Lighting
- Light/ LED type White : Number of LEDs 8
- LED on/off switchable : Yes
- Infrared filter IR cut-filter >650 nm : Diffuser available No
- Emission filter No : Polarizer No
- Optics : Magnification 10-90x
Ce tableau resume les principaux parametres du AM4013MTL et facilite la comparaison avec d'autres references disponibles.
| Caract\u00E9ristique | AM4013MTL |
|---|---|
| Specification | Lighting |
| Light/ LED type White | Number of LEDs 8 |
| LED on/off switchable | Yes |
| Infrared filter IR cut-filter >650 nm | Diffuser available No |
| Emission filter No | Polarizer No |
| Optics | Magnification 10-90x |
| Macro zoom No | Working distance Long |
| Lens type Glass with anti-reflection coating | Sensor |
| Sensor type CMOS | Resolution 1.3 Megapixel (1280x1024) |
| Maximum frame rate 30 fps | Compatibility |
| Interface USB 2.0 | Operating system Windows 7,8,10 & 11, MacOS 10.9 and up |
| Included software DinoCapture 2.0 (Windows), DinoXcope (Mac | OS) |
| Supported image formats | (Windows) |
| BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, | PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats | (Windows) |
| WMV, FLV, SWF | Supported image formats (MacOS) |
| JPEG, PNG | Supported video formats (MacOS) |
| MOV | Imaging standards DirectShow, UVC |
| Wifi Wireless-ready, requires the WF-10 WiFi streamer | (optional) |
| Housing | Housing material Metal housing |
| Dimensions 10.5cm (L) x 3.2cm (D) | Weight 140g |
| Cable length 1.8m | Features |
| Special feature No | Measurement Yes |
| Calibration Yes | Microtouch sensor Yes |
| ESD safe Yes | Information |
| Package contents Microscope, carry pouch, software CD, calibration | target, user manual |
| Warranty information 2 years European warranty | Regulatory approval CE, FCC, ROHS |
