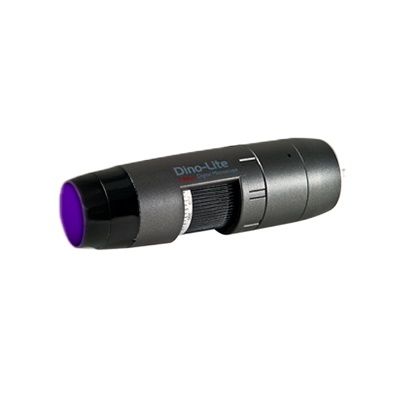

AM4115T-FVW - EDGE
The VW series has two types of LED lights that are switchable between white and UV light. This model has a filter to filter out the returning UV light so that an image with natural colors can be obtained.
Pourquoi choisir ce modele ?
Le AM4115T-FVW - EDGE fait partie de la gamme Megaindus concue pour accompagner les equipes industrielles en production quotidienne. Sa conception robuste assure une performance reguliere sans multiplier les operations de maintenance.
Le modele presente est propose a 7 500,00 MAD. Rupture de stock pour garantir un approvisionnement fiable et rapide.
Megaindus accompagne chaque projet : analyse, parametrage, mise en service et transfert de competences. Vous beneficiez ainsi d'un referent dedie et d'une documentation claire pour securiser l'exploitation du AM4115T-FVW - EDGE.
Points cles a retenir
- Specification : Lighting
- Light/ LED type 395 nm UV + white : Number of LEDs 4+4
- LED on/off switchable : Yes
- Infrared filter IR cut-filter >650 nm : Diffuser available Yes (N3C-D included)
- Emission filter Yes, Emission barrier filter 375 nm : Polarizer No
- Optics : Magnification 20-220x
Ce tableau resume les principaux parametres du AM4115T-FVW - EDGE et facilite la comparaison avec d'autres references disponibles.
| Caract\u00E9ristique | AM4115T-FVW - EDGE |
|---|---|
| Specification | Lighting |
| Light/ LED type 395 nm UV + white | Number of LEDs 4+4 |
| LED on/off switchable | Yes |
| Infrared filter IR cut-filter >650 nm | Diffuser available Yes (N3C-D included) |
| Emission filter Yes, Emission barrier filter 375 nm | Polarizer No |
| Optics | Magnification 20-220x |
| Macro zoom No | Working distance Standard |
| Lens type Glass with anti-reflection coating | Sensor |
| Sensor type CMOS | Resolution 1.3 Megapixel (1280x1024) |
| Maximum frame rate 30 fps | Compatibility |
| Interface USB 2.0 | Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up |
| Included software DinoCapture 2.0 (Windows), DinoXcope (Mac | OS) |
| Supported image formats | (Windows) |
| BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, | PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats | (Windows) |
| WMV, FLV, SWF | Supported image formats (MacOS) |
| JPEG, PNG | Supported video formats (MacOS) |
| MOV | Imaging standards DirectShow, UVC |
| Wifi Wireless-ready, requires the WF-10 WiFi streamer | (optional) |
| Housing | Housing material Composite/ plastic housing |
| Magnification lock Yes | Dimensions 10.5cm (L) x 3.2cm (D) |
| Weight 105g | Cable length 1.8m |
| Features | Special feature No |
| Measurement Yes | Calibration Yes |
| Microtouch sensor Yes | ESD safe No |
| Information | Package contents Microscope, carry pouch, software CD, calibration |
| target, user manual | Warranty information 2 years European warranty |
