AM4115T-GFBW

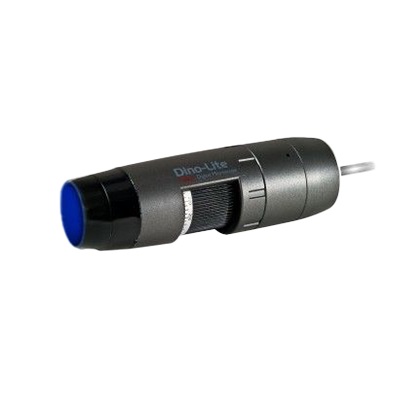

The Dino-Lite AM4115T-GFBW digital microscope is optimized for research and viewing fluorescent objects by using 480nm LEDs. It has a 510nm emission filter that is designed to observe including but not limited to GFP (green fluorescent protein).
Caractristiques
Compared to the traditional fluorescence microscope's band-pass type of emission filters, the Dino-Lite's long-pass type emission filter provides visibility and sensitivity over a larger range of the fluorescence wavelength. Green fluorescent objects pop out under the microscope and you can clearly see its green glow. The AM4115T-GFBW has the capability of switching the light source from the 480nm excitation LED's to the white LED which is convenient for locating the object and obtaining an easy focus.
Pourquoi choisir ce modele ?
Le AM4115T-GFBW fait partie de la gamme Megaindus concue pour accompagner les equipes industrielles en production quotidienne. Sa conception robuste assure une performance reguliere sans multiplier les operations de maintenance.
Le modele presente est propose a 8 950,00 MAD. Rupture de stock pour garantir un approvisionnement fiable et rapide.
Megaindus accompagne chaque projet : analyse, parametrage, mise en service et transfert de competences. Vous beneficiez ainsi d'un referent dedie et d'une documentation claire pour securiser l'exploitation du AM4115T-GFBW.
Points cles a retenir
- Specification : Lighting
- Light/ LED type 480nm excitation + white : Number of LEDs 7 FL + 1 White
- LED on/off switchable : Yes
- Infrared filter No : Diffuser available No
- Emission filter 510nm, LP : Polarizer No
- Fluorophores GFP, FITC : Optics
Ce tableau resume les principaux parametres du AM4115T-GFBW et facilite la comparaison avec d'autres references disponibles.
| Caract\u00E9ristique | AM4115T-GFBW |
|---|---|
| Specification | Lighting |
| Light/ LED type 480nm excitation + white | Number of LEDs 7 FL + 1 White |
| LED on/off switchable | Yes |
| Infrared filter No | Diffuser available No |
| Emission filter 510nm, LP | Polarizer No |
| Fluorophores GFP, FITC | Optics |
| Magnification 20-220x | Macro zoom No |
| Working distance Standard | Lens type Glass with anti-reflection coating |
| Sensor | Sensor type CMOS |
| Resolution 1.3 Megapixel (1280x1024) | Maximum frame rate 30 fps |
| Compatibility | Interface USB 2.0 |
| Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up | Included software DinoCapture 2.0 (Windows), DinoXcope (Mac |
| OS) | Supported image formats (Windows) |
| BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, | PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats | (Windows) |
| WMV, FLV, SWF | Supported image formats (MacOS) |
| JPEG, PNG | Supported video formats MOV (MacOS) |
| Imaging standards DirectShow, UVC | Wifi Wireless-ready, requires the WF-10 WiFi streamer (optional) |
| Housing | Housing material Composite/ plastic housing |
| Magnification lock Yes | Dimensions 10.5cm (L) x 3.2cm (D) |
| Weight 105g | Cable length 1.8m |
| Features | Special feature No |
| Measurement Yes | Calibration Yes |
| Microtouch sensor Yes | ESD safe No |
| Information | Package contents Microscope, carry pouch, software CD, calibration |
| target, user manual | Warranty information 2 years European warranty |
