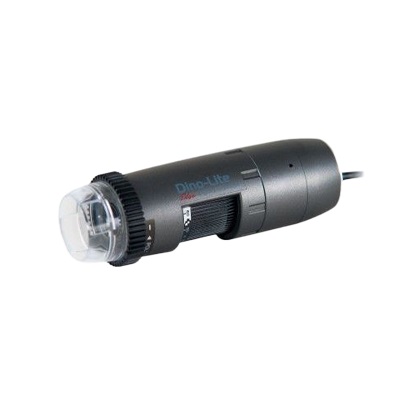

AM4115ZTW
The Dino-Lite Edge models provide superior image quality and a high level of flexibility due to the adaptable cap design. The built-in adjustable polarizer reduces glare and reflection on shiny objects. This model can work with 2 magnification rates while maintaining the same working distance, making this the ideal model for macro view applications with a larger field of view and a zoom function to reveal smaller details. Different caps are supplied with the microscope making the Dino-Lite Edge the perfect choice for any professional application
Pourquoi choisir ce modele ?
Le AM4115ZTW fait partie de la gamme Megaindus concue pour accompagner les equipes industrielles en production quotidienne. Sa conception robuste assure une performance reguliere sans multiplier les operations de maintenance.
Le modele presente est propose a 7 650,00 MAD. Rupture de stock pour garantir un approvisionnement fiable et rapide.
Megaindus accompagne chaque projet : analyse, parametrage, mise en service et transfert de competences. Vous beneficiez ainsi d'un referent dedie et d'une documentation claire pour securiser l'exploitation du AM4115ZTW.
Points cles a retenir
- Lighting : Light/ LED type White
- Number of LEDs 8 : LED on/off switchable: Yes
- Infrared filter IR cut-filter >650 nm : Diffuser available Yes (N3C-D included)
- Emission filter No : Polarizer Yes, linear
- Optics : Magnification 10-50x
- Macro zoom Nee : Working distance Standard
Ce tableau resume les principaux parametres du AM4115ZTW et facilite la comparaison avec d'autres references disponibles.
| Caract\u00E9ristique | AM4115ZTW |
|---|---|
| Lighting | Light/ LED type White |
| Number of LEDs 8 | LED on/off switchable: Yes |
| Infrared filter IR cut-filter >650 nm | Diffuser available Yes (N3C-D included) |
| Emission filter No | Polarizer Yes, linear |
| Optics | Magnification 10-50x |
| Macro zoom Nee | Working distance Standard |
| Lens type Glass with anti-reflection coating | Sensor |
| Sensor type CMOS | Resolution 1.3 Megapixel (1280x1024) |
| Maximum frame rate 30 fps | Compatibility |
| Interface USB 2.0 | Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up |
| Included software DinoCapture 2.0 (Windows), DinoXcope (Mac | OS) |
| Supported image formats | (Windows) |
| BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, | PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats | (Windows) |
| WMV, FLV, SWF | Supported image formats (MacOS) |
| JPEG, PNG | Supported video formats (MacOS) |
| MOV | Imaging standards DirectShow, UVC |
| Wifi Wireless-ready, requires the WF-10 WiFi streamer | (optional) |
| Housing | Housing material Composite/ plastic housing |
| Magnification lock Yes | Dimensions 10.5cm (L) x 3.2cm (D) |
| Weight 105g | Cable length 1.8m |
| Features | Special feature Macro zoom |
| Measurement Yes | Calibration Yes |
| Microtouch sensor Yes | ESD safe No |
| Information | Package contents Microscope, carry pouch, software CD, calibration |
| target, user manual, N3C-O- Open cap, N3C-CClosed cap, N3C-D- diffuser cap, N3C-EExtension cap, N3C-L- Long cap, N3C-S- Side | light cap |
| Warranty information 2 years European warranty | Regulatory approval CE, FCC, ROHS |
