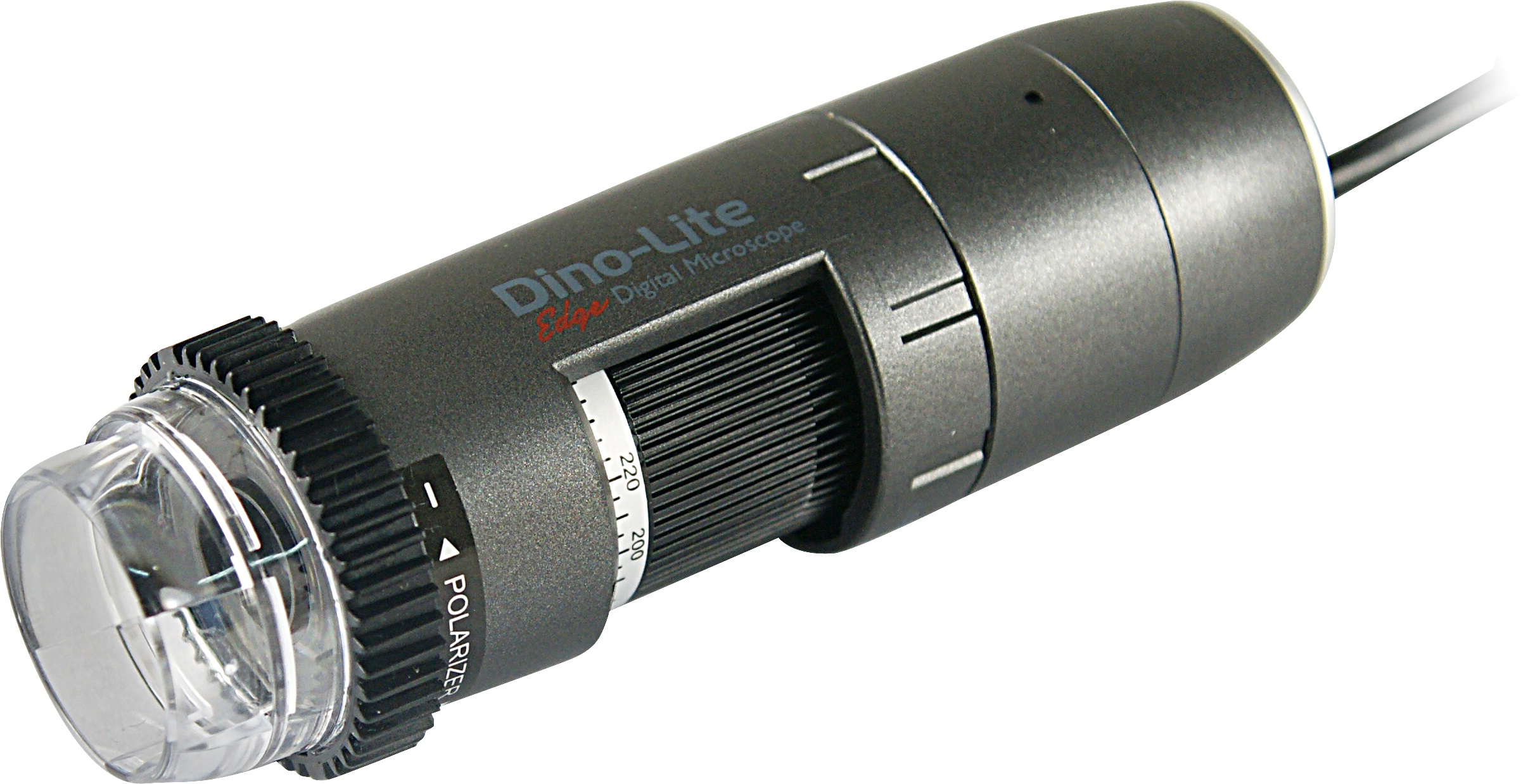

AM5216ZTL
The Dino-Lite AM5216ZTL connects directly to a VGA screen via a VGA (D-SUB) connector. It offers a high frame rate of up to 60fps at 1280x720 resolution, resulting in crystal clear images.
Caractristiques
Together with the long working distance of up to 15 centimeters the AM5216ZTL is the ideal choice in situations, where real time images are vital, such as working on PCB's or other miniature objects. By tapping the Microtouch sensor on the microscope, the image can be frozen for inspection of important details and by pressing the Microtouch sensor for 2 seconds the LEDs can be switched on and off. The built-in adjustable polarizer reduces glare and reflection on shiny objects, such as metal surfaces, electronics, plastics etc. (The AM5216ZTL replaces model AM5116ZTL.)
Pourquoi choisir ce modele ?
Le AM5216ZTL fait partie de la gamme Megaindus concue pour accompagner les equipes industrielles en production quotidienne. Sa conception robuste assure une performance reguliere sans multiplier les operations de maintenance.
Le modele presente est propose a 7 300,00 MAD. Rupture de stock pour garantir un approvisionnement fiable et rapide.
Megaindus accompagne chaque projet : analyse, parametrage, mise en service et transfert de competences. Vous beneficiez ainsi d'un referent dedie et d'une documentation claire pour securiser l'exploitation du AM5216ZTL.
Points cles a retenir
- Lighting : Light/ LED type White
- Number of LEDs 8 : LED on/off switchable: Yes
- Infrared filter IR cut-filter >650 nm : Diffuser available Yes (N3C-D included)
- Emission filter No : Polarizer Yes, linear
- Optics : Magnification 10-140x
- Macro zoom No : Working distance Long
Ce tableau resume les principaux parametres du AM5216ZTL et facilite la comparaison avec d'autres references disponibles.
| Caract\u00E9ristique | AM5216ZTL |
|---|---|
| Lighting | Light/ LED type White |
| Number of LEDs 8 | LED on/off switchable: Yes |
| Infrared filter IR cut-filter >650 nm | Diffuser available Yes (N3C-D included) |
| Emission filter No | Polarizer Yes, linear |
| Optics | Magnification 10-140x |
| Macro zoom No | Working distance Long |
| Lens type Glass with anti-reflection coating | Sensor |
| Sensor type CMOS | Resolution 1280x720 (720p) |
| Maximum frame rate 60 fps | Compatibility |
| Interface VGA (D-Sub) | Wifi No |
| Housing | Housing material Composite/ plastic housing |
| Magnification lock Yes | Dimensions 10.5cm (L) x 3.2cm (D) |
| Weight 105g | Cable length 0.6m |
| Features | Special feature No |
| Measurement No | Calibration No |
| Microtouch sensor Yes | ESD safe No |
| Information | Package contents Microscope, carry pouch, power adapter, front |
| cover box, user manual | Warranty information 2 years European warranty |
