AM7115MT-FUW

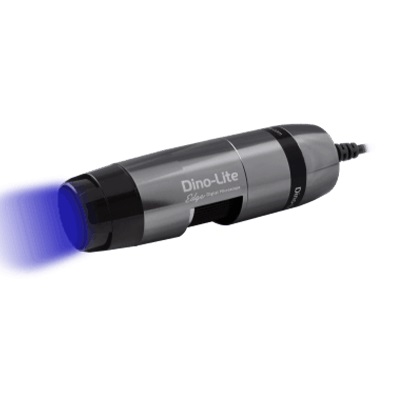

The Dino-Lite AM7115MT-FUW is part of the Dino-Lite special light range. This model has two types of LED lights that are switchable between white and UV light. The UV LEDs are near UV LEDs with a spectrum of 375nm. This model offers a standard working distance, a wide magnification range from 20 – 220x and comes with a high quality 5 megapixel Edge sensor.
Caractristiques
• 5 Megapixel Edge sensor • USB 2.0 • 20-220x magnification • Metal housing• Extensive measurement functions • Calibration • Exchangeable front caps
Pourquoi choisir ce modele ?
Le AM7115MT-FUW fait partie de la gamme Megaindus concue pour accompagner les equipes industrielles en production quotidienne. Sa conception robuste assure une performance reguliere sans multiplier les operations de maintenance.
Le modele presente est propose a 11 000,00 MAD. Rupture de stock pour garantir un approvisionnement fiable et rapide.
Megaindus accompagne chaque projet : analyse, parametrage, mise en service et transfert de competences. Vous beneficiez ainsi d'un referent dedie et d'une documentation claire pour securiser l'exploitation du AM7115MT-FUW.
Points cles a retenir
- Lighting : Light/ LED type ~375 nm UV + white
- Number of LEDs 4+4 : LED on/off switchable: Yes
- Infrared filter IR cut-filter >650 nm : Diffuser available Yes (N3C-D included)
- Emission filter Yes, Emission barrier filter 375 nm : Polarizer No
- Optics : Magnification 20-220x
- Macro zoom No : Working distance Standard
Ce tableau resume les principaux parametres du AM7115MT-FUW et facilite la comparaison avec d'autres references disponibles.
| Caract\u00E9ristique | AM7115MT-FUW |
|---|---|
| Lighting | Light/ LED type ~375 nm UV + white |
| Number of LEDs 4+4 | LED on/off switchable: Yes |
| Infrared filter IR cut-filter >650 nm | Diffuser available Yes (N3C-D included) |
| Emission filter Yes, Emission barrier filter 375 nm | Polarizer No |
| Optics | Magnification 20-220x |
| Macro zoom No | Working distance Standard |
| Lens type Glass with anti-reflection coating | Sensor |
| Sensor type CMOS | Resolution 5 Megapixel (2592x1944) |
| Maximum frame rate 30 fps | Compatibility |
| Interface USB 2.0 | Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up |
| Included software DinoCapture 2.0 (Windows), DinoXcope (Mac | OS) |
| Supported image formats | (Windows) |
| BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, | PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats | (Windows) |
| WMV, FLV, SWF | Supported image formats (MacOS) |
| JPEG, PNG | Supported video formats (MacOS) |
| MOV (max. 1.3MP) | Imaging standards DirectShow, UVC |
| Wifi Wireless-ready, requires the WF-10 WiFi streamer | (optional) |
| Housing | Housing material Metal housing |
| Magnification lock Yes | Dimensions 10.5cm (L) x 3.2cm (D) |
| Weight 140g | Cable length 1.8m |
| Features | Special feature No |
| Measurement Yes | Calibration Yes |
| Microtouch sensor Yes | ESD safe Yes |
| Information | Package contents Microscope, carry pouch, software CD, calibration |
| target, user manual | Warranty information 2 years European warranty |
