AM73115MTF

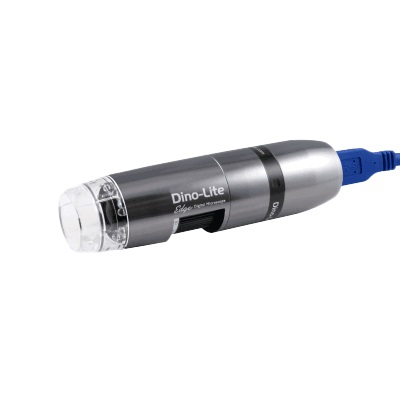

The Dino-Lite AM73115MTF is a special model within the High Speed range with USB 3.0 connection. It offers superb uncompressed image quality and color reproduction in a robust, compact and appealing metal housing. The AM73115MTF (“F” stands for Far) offers an extra-large working distance. USB 3.0 adds a new transfer mode called "SuperSpeed" (SS) capable of transferring data up to 5Gbits/s (625MB/s). Dino-Lite models with USB 3.0 offer an image transfer speed of up to 45FPS at a 1280 x 960 resolution. SuperSpeed allows you to take advantage of the full power of the Dino-Lite Edge Series optics including improved colour accuracy and image quality.
Pourquoi choisir ce modele ?
Le AM73115MTF fait partie de la gamme Megaindus concue pour accompagner les equipes industrielles en production quotidienne. Sa conception robuste assure une performance reguliere sans multiplier les operations de maintenance.
Le modele presente est propose a 13 000,00 MAD. Rupture de stock pour garantir un approvisionnement fiable et rapide.
Megaindus accompagne chaque projet : analyse, parametrage, mise en service et transfert de competences. Vous beneficiez ainsi d'un referent dedie et d'une documentation claire pour securiser l'exploitation du AM73115MTF.
Points cles a retenir
- Lighting : Light/ LED type White
- Number of LEDs 8 : LED on/off switchable: Yes
- Infrared filter IR cut-filter >650 nm : Diffuser available Yes (N3C-D optional)
- Emission filter No : Polarizer No
- Optics : Magnification 10-70x
- Macro zoom No : Working distance Long
Ce tableau resume les principaux parametres du AM73115MTF et facilite la comparaison avec d'autres references disponibles.
| Caract\u00E9ristique | AM73115MTF |
|---|---|
| Lighting | Light/ LED type White |
| Number of LEDs 8 | LED on/off switchable: Yes |
| Infrared filter IR cut-filter >650 nm | Diffuser available Yes (N3C-D optional) |
| Emission filter No | Polarizer No |
| Optics | Magnification 10-70x |
| Macro zoom No | Working distance Long |
| Lens type Glass with anti-reflection coating | Sensor |
| Sensor type CMOS | Resolution 5 Megapixel (2592x1944) |
| Maximum frame rate 45fps (max 20fps video recording) | Compatibility |
| Interface USB 3.0, Cable included** | Operating system Windows7, 8, 10 & 11, MacOS 10.9 and up |
| Included software DinoCapture 2.0 (Windows), DinoXcope (Mac | OS) |
| Supported image formats | (Windows) |
| BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, | PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats | (Windows) |
| WMV, FLV, SWF | Supported image formats (MacOS) |
| JPEG, PNG | Supported video formats (MacOS) |
| MOV (max 1.3MP) | Imaging standards DirectShow, UVC |
| Wifi No | Housing |
| Housing material Metal housing | Magnification lock Yes |
| Dimensions 11.9cm (L) x 3.3cm (H) | Weight 110g |
| Cable length 1.8m | Features |
| Special feature Flexible LED Control (FLC), Extra Long Working | Distance |
| Measurement Yes | Calibration Yes |
| Microtouch sensor Yes | ESD safe Yes |
| Information | Package contents Microscope, carry pouch, software CD, user |
| manual, quick guide, calibration target | Warranty information 2 years European warranty |
| Regulatory approval CE, FCC, ROHS | Note **Dino-Lite USB 3.0 models use a custom USB-A |
| and USB-C cable that is specifically designed for | Dino-Lite |
