AM73515MT8A

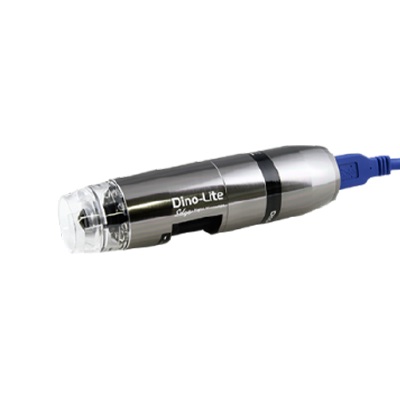

Description The AM73515MT8A is a 5MP Dino-Lite Edge Series USB 3.0 microscope that has a magnification range of 700-900x with built-in coaxial illumination. By using the Flexible LED Control (FLC), this model is capable of switching between or mixing, brightfield and coaxial illumination. USB 3.0 adds a new transfer mode called "SuperSpeed" (SS) capable of transferring data up to 5Gbits/s (625MB/s). Dino-Lite models with USB 3.0 offer an image transfer speed of up to 45FPS at a 1280 x 960 resolution. SuperSpeed allows you to take advantage of the full power of the Dino-Lite Edge Series optics including improved colour accuracy and image quality.
Pourquoi choisir ce modele ?
Le AM73515MT8A fait partie de la gamme Megaindus concue pour accompagner les equipes industrielles en production quotidienne. Sa conception robuste assure une performance reguliere sans multiplier les operations de maintenance.
Le modele presente est propose a 17 050,00 MAD. Rupture de stock pour garantir un approvisionnement fiable et rapide.
Megaindus accompagne chaque projet : analyse, parametrage, mise en service et transfert de competences. Vous beneficiez ainsi d'un referent dedie et d'une documentation claire pour securiser l'exploitation du AM73515MT8A.
Points cles a retenir
- Lighting : Light/ LED type White
- Number of LEDs 8 : LED on/off switchable: Yes
- Infrared filter IR cut-filter >650 nm : Diffuser available No
- Emission filter No : Polarizer No
- Optics : Magnification 700-900x
- Macro zoom No : Working distance Standard
Ce tableau resume les principaux parametres du AM73515MT8A et facilite la comparaison avec d'autres references disponibles.
| Caract\u00E9ristique | AM73515MT8A |
|---|---|
| Lighting | Light/ LED type White |
| Number of LEDs 8 | LED on/off switchable: Yes |
| Infrared filter IR cut-filter >650 nm | Diffuser available No |
| Emission filter No | Polarizer No |
| Optics | Magnification 700-900x |
| Macro zoom No | Working distance Standard |
| Lens type Glass with anti-reflection coating | Sensor |
| Sensor type CMOS | Resolution 5 Megapixel (2592x1944) |
| Maximum frame rate 45fps (max 20fps video recording) | Compatibility |
| Interface USB 3.0, Cable included** | Operating system Windows 7, 8, 10 & 11, MacOS 10.11.16 and up |
| Included software DinoCapture 2.0 (Windows), DinoXcope (Mac | OS) |
| Supported image formats | (Windows) |
| BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, | PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats | (Windows) |
| WMV, FLV, SWF | Supported image formats (MacOS) |
| JPEG, PNG | Supported video formats (MacOS) |
| MOV (max 1.3MP) | Imaging standards DirectShow, UVC |
| Wifi No | Housing |
| Housing material Metal housing | Magnification lock Yes |
| Dimensions 11.9cm (L) x 3.3cm (H) | Weight 110g |
| Cable length 1.8m | Features |
| Special feature Automatic Magnification Reading (AMR), | Flexible LED Control (FLC), Coaxial illumination |
| Measurement Yes | Calibration Yes |
| Microtouch sensor Yes | ESD safe Yes |
| Information | Package contents Microscope, carry pouch, software CD, user |
| manual, quick guide, calibration target, front cover | N3C-C, N3C-E, N3C-O |
| Warranty information 2 years European warranty | Regulatory approval CMOS, UKCA – available upon request – |
