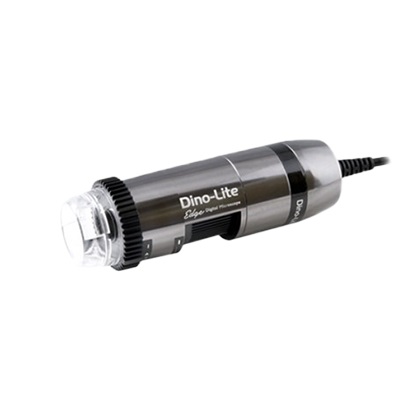

AM7515MZT1P
5.0 Megapixels The advanced CMOS image sensor allows to transmit sharp and crisp image with resolution up to 2592x1944. Aim Point Laser (APL) The Aim Point Laser (APL) is an integrated trough-lens laser projecting a red dot that provides a visual reference point for the positioning and focusing of the target. Flexible LED Control (FLC) The Flexible LED Control (FLC) provides independent on/off control and light intensity level adjustment to the four LED quadrants, as well as the aim point laser. Automatic Magnification Reading (AMR) Without the hassle to stop and check the magnification for doing a measurement, the AMR detects the magnification rate automatically through the software, making the measurement be a more efficient, accurate, and pleasant process. Adjustable Polarizer The built-in adjustable polarizer removes the unwanted reflection or glare from the object's surface for better contrast
Pourquoi choisir ce modele ?
Le AM7515MZT1P fait partie de la gamme Megaindus concue pour accompagner les equipes industrielles en production quotidienne. Sa conception robuste assure une performance reguliere sans multiplier les operations de maintenance.
Le modele presente est propose a 12 300,00 MAD. Rupture de stock pour garantir un approvisionnement fiable et rapide.
Megaindus accompagne chaque projet : analyse, parametrage, mise en service et transfert de competences. Vous beneficiez ainsi d'un referent dedie et d'une documentation claire pour securiser l'exploitation du AM7515MZT1P.
Points cles a retenir
- Model : AM7515MZT1P Dino-Lite Edge
- Interface : USB 2.0
- Product Resolution : 5M pixels (2592x1944)
- Magnification : 70x~140x
- Frame Rate : 10fps in 5MP/3MP/2MP, MJPEG
- 25fps in 1.3MP, MJPEG : 30fps in VGA, MJPEG
Ce tableau resume les principaux parametres du AM7515MZT1P et facilite la comparaison avec d'autres references disponibles.
| Caract\u00E9ristique | AM7515MZT1P |
|---|---|
| Model | AM7515MZT1P Dino-Lite Edge |
| Interface | USB 2.0 |
| Product Resolution | 5M pixels (2592x1944) |
| Magnification | 70x~140x |
| Frame Rate | 10fps in 5MP/3MP/2MP, MJPEG |
| 25fps in 1.3MP, MJPEG | 30fps in VGA, MJPEG |
| Website Product Page (WPP) | Ref. WPP_AM7515MZT1P_20220419_final version |
| 3 | www.dino-lite.eu |
| Saving Format | Image: |
| DinoCapture2.0 | WMV, FLV, SWF |
| PNM | DinoXcope: PNG, JPEG |
| DinoXcope | MOV |
| Lighting | 8 white LEDs |
| Laser Pointer | 656nm laser diode |
| MicroTouch | Yes |
| Operating System Supported | Windows 10, 8, 7 |
| Mac OS 10.14 or later | Calibration Function |
| Yes | Unit Dimension |
| 10.7cm (H) x 3.2cm (D) | Unit Weight |
