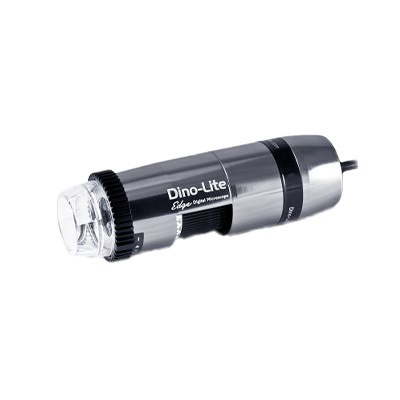

AM7515MZTL
With the use of the latest, cutting-edge optics, a brand new 5 megapixel sensor and several special features such as Flexible LED Control (FLC) and full aluminum body, the Dino-Lite AM7515MZTL is a marvel of technology and the best choice for the highdemanding professional. The Dino-Lite AM7515MZTL offers superb image quality and color reproduction in a robust, compact and appealing housing.
Caractristiques
• 5 Megapixel Edge sensor • Long Working Distance (LWD) • 10-140x magnification • Integrated polarizer • Aluminum housing • Automatic Magnification Reading (AMR) • Flexible LED Control (FLC) • Extensive measurement functions • Calibration • Exchangeable front caps
Pourquoi choisir ce modele ?
Le AM7515MZTL fait partie de la gamme Megaindus concue pour accompagner les equipes industrielles en production quotidienne. Sa conception robuste assure une performance reguliere sans multiplier les operations de maintenance.
Le modele presente est propose a 11 750,00 MAD. Rupture de stock pour garantir un approvisionnement fiable et rapide.
Megaindus accompagne chaque projet : analyse, parametrage, mise en service et transfert de competences. Vous beneficiez ainsi d'un referent dedie et d'une documentation claire pour securiser l'exploitation du AM7515MZTL.
Points cles a retenir
- Lighting : Light/ LED type White
- Number of LEDs 8 : LED on/off switchable: Yes
- Infrared filter IR cut-filter >650 nm : Diffuser available Yes (N3C-D included)
- Emission filter No : Polarizer Yes, linear
- Optics : Magnification 10-140x
- Macro zoom No : Working distance Long
Ce tableau resume les principaux parametres du AM7515MZTL et facilite la comparaison avec d'autres references disponibles.
| Caract\u00E9ristique | AM7515MZTL |
|---|---|
| Lighting | Light/ LED type White |
| Number of LEDs 8 | LED on/off switchable: Yes |
| Infrared filter IR cut-filter >650 nm | Diffuser available Yes (N3C-D included) |
| Emission filter No | Polarizer Yes, linear |
| Optics | Magnification 10-140x |
| Macro zoom No | Working distance Long |
| Lens type Glass with anti-reflection coating | Sensor |
| Sensor type CMOS | Resolution 5 Megapixel (2592x1944) |
| Maximum frame rate 30 fps | Compatibility |
| Interface USB 2.0 | Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up |
| Included software DinoCapture 2.0 (Windows), DinoXcope (Mac | OS) |
| Supported image formats | (Windows) |
| BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, | PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats | (Windows) |
| WMV, FLV, SWF | Supported image formats (MacOS) |
| JPEG, PNG | Supported video formats (MacOS) |
| MOV (max 1.3MP) | Imaging standards DirectShow, UVC |
| Wifi Wireless-ready, requires the WF- 10 Wi-Fi | streamer (optional) |
| Housing | Housing material Metal housing |
| Magnification lock Yes | Dimensions 10.5cm (L) x 3.2cm (D) |
| Weight 135gr | Cable length 1.8m |
| Features | Special feature Automatic Magnification Reading (AMR), |
| Flexible LED Control (FLC). | Measurement Yes |
| Calibration Yes | Microtouch sensor Yes |
| ESD safe Yes | Information |
| Package contents Microscope, carry pouch, software CD, calibration | target, user manual, N3C-O- Open cap, N3C-CClosed cap, N3C-D- Diffuser cap, N3C-EExtension cap, N3C-L- Long cap, N3C-S- Side |
| light cap | Warranty information 2 years European warranty |
