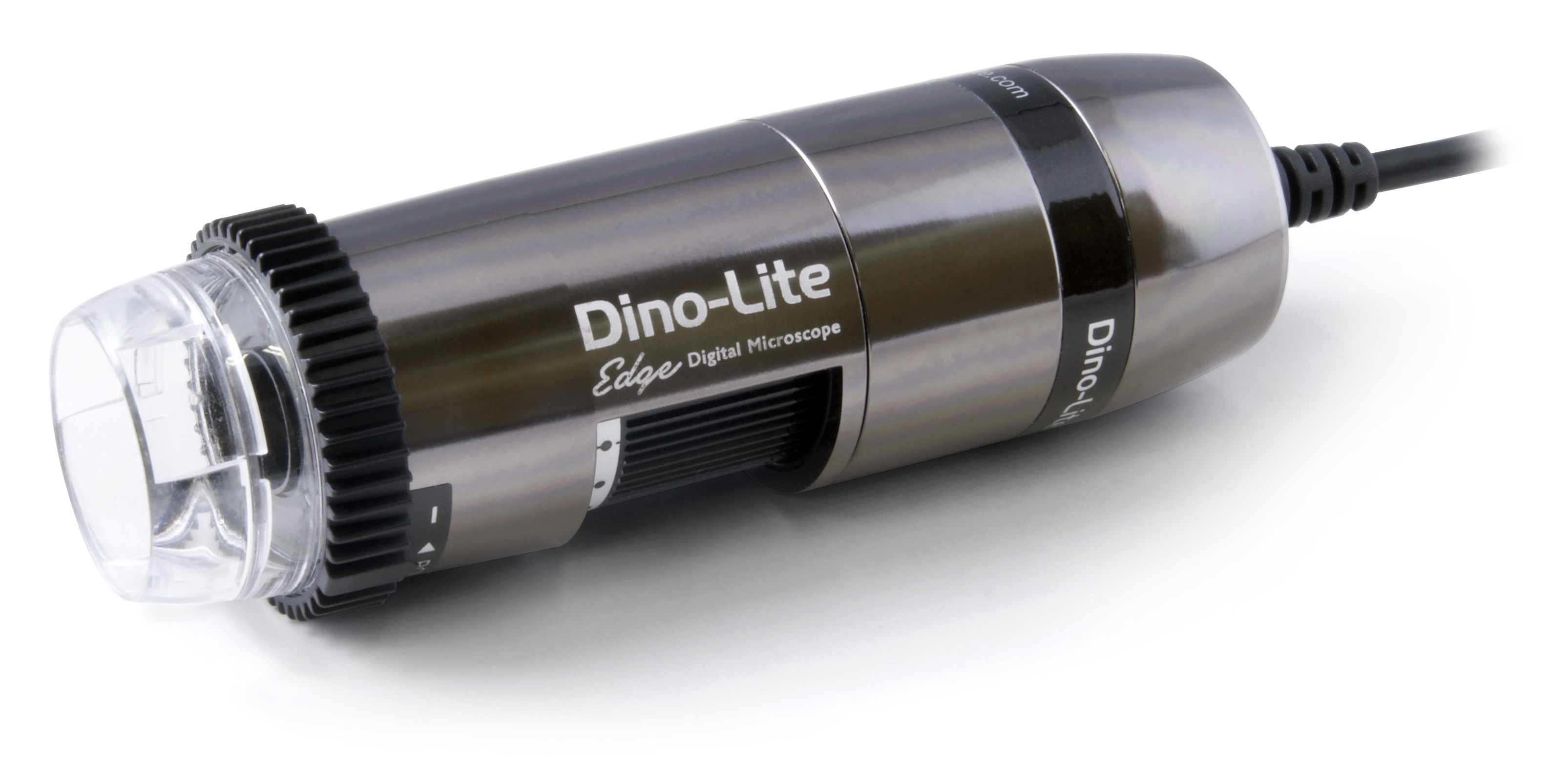

AM7915MZTL
The AM7915MZTL is part of the Long Working Distance (LWD) range and with its Long Working Distance and magnification range from 10 - 140x, it is suitable for a wide range of applications where extra distance to the object or a larger field of view is required.
Caractristiques
• 5 Megapixel Edge sensor • Extended Depth of Field (EDOF) • Extended Dynamic Range (EDR) • 10-140x magnification • Long working distance • Automatic Magnification Reading (AMR) • Adjustable polarizer • Flexible LED Control (FLC)
Pourquoi choisir ce modele ?
Le AM7915MZTL fait partie de la gamme Megaindus concue pour accompagner les equipes industrielles en production quotidienne. Sa conception robuste assure une performance reguliere sans multiplier les operations de maintenance.
Le modele presente est propose a 13 750,00 MAD. Rupture de stock pour garantir un approvisionnement fiable et rapide.
Megaindus accompagne chaque projet : analyse, parametrage, mise en service et transfert de competences. Vous beneficiez ainsi d'un referent dedie et d'une documentation claire pour securiser l'exploitation du AM7915MZTL.
Points cles a retenir
- Lighting : Light/ LED type White
- Number of LEDs 8 : LED on/off switchable: Yes
- Infrared filter IR cut-filter >650 nm : Diffuser available Yes (N3C-D included)
- Emission filter No : Polarizer Yes, linear
- Optics : Magnification 10-140x
- Macro zoom No : Working distance Long
Ce tableau resume les principaux parametres du AM7915MZTL et facilite la comparaison avec d'autres references disponibles.
| Caract\u00E9ristique | AM7915MZTL |
|---|---|
| Lighting | Light/ LED type White |
| Number of LEDs 8 | LED on/off switchable: Yes |
| Infrared filter IR cut-filter >650 nm | Diffuser available Yes (N3C-D included) |
| Emission filter No | Polarizer Yes, linear |
| Optics | Magnification 10-140x |
| Macro zoom No | Working distance Long |
| Lens type Glass with anti-reflection coating | Sensor |
| Sensor type CMOS | Resolution 5 Megapixel (2592x1944) |
| Maximum frame rate 30 fps | Compatibility |
| Interface USB 2.0 | Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up |
| Included software DinoCapture 2.0 (Windows), DinoXcope (Mac | OS) |
| Supported image formats | (Windows) |
| BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, | PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats | (Windows) |
| WMV, FLV, SWF | Supported image formats (MacOS) |
| JPEG, PNG | Supported video formats (MacOS) |
| MOV (max 1.3MP) | Imaging standards DirectShow, UVC |
| Wifi Wireless-ready, requires the WF-10 WiFi streamer | (optional) |
| Housing | Housing material Metal housing |
| Dimensions 10.5cm (L) x 3.2cm (D) | Weight 137g |
| Cable length 1.8m | Features |
| Special feature Automatic Magnification Reading (AMR), | Extended Dynamic Range (EDR), Extended Depth |
| of Field (EDOF), Flexible LED Control (FLC) | Measurement Yes |
| Calibration Yes | Microtouch sensor Yes |
| ESD safe Yes | Information |
| Package contents Microscope, carry pouch, software CD, calibration | target, user manual, N3C-O- Open cap, N3C-CClosed cap, N3C-D- Diffuser cap, N3C-EExtension cap, N3C-L- Long cap, N3C-S- Side |
| light cap | Warranty information 2 years European warranty |
