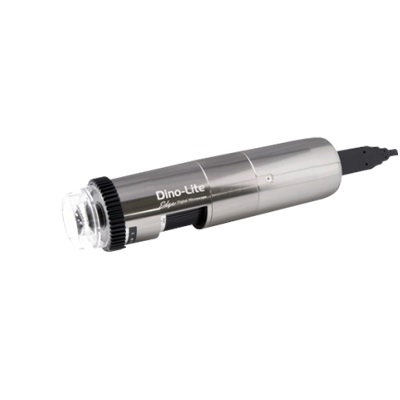

AM8917MZTL
Capture stunning images with the AM8517MZTL 8-megapixel long working distance digital microscope. Engineered with a comprehensive set of features, including AMR, this model is designed to excel in both imaging and measurement-oriented tasks.
Caractristiques
8 Megapixels • High Optical Resolution • Automatic Magnification Reading (AMR) • Extended Depth of Field (EDOF) • Extended Dynamic Range (EDR) • Depth Acquisition (DPQ) • Enhanced Flexible LED Control (eFLC) • Long Working Distance (LWD) Optics • Adjustable Polarizer • Robust Metal Housing • 10x ~ 140x magnification (Edge shading occurs below 25x when previewing in 16:9 windows.)
Pourquoi choisir ce modele ?
Le AM8917MZTL fait partie de la gamme Megaindus concue pour accompagner les equipes industrielles en production quotidienne. Sa conception robuste assure une performance reguliere sans multiplier les operations de maintenance.
Le modele presente est propose a 18 800,00 MAD. Rupture de stock pour garantir un approvisionnement fiable et rapide.
Megaindus accompagne chaque projet : analyse, parametrage, mise en service et transfert de competences. Vous beneficiez ainsi d'un referent dedie et d'une documentation claire pour securiser l'exploitation du AM8917MZTL.
Points cles a retenir
- Lighting : Light/ LED type White
- Number of LEDs 8 : Optics
- Magnification 10x ~ 140x : Working distance 237.5 ~ 33.9 mm
- Sensor : Sensor type CMOS
- Resolution 8 Megapixel (3840 x 2160) : Maximum frame rate 10 fps at 8.0 MP, MJPEG 25 fps at 2.0 MP,
- MJPEG : Compatibility
Ce tableau resume les principaux parametres du AM8917MZTL et facilite la comparaison avec d'autres references disponibles.
| Caract\u00E9ristique | AM8917MZTL |
|---|---|
| Lighting | Light/ LED type White |
| Number of LEDs 8 | Optics |
| Magnification 10x ~ 140x | Working distance 237.5 ~ 33.9 mm |
| Sensor | Sensor type CMOS |
| Resolution 8 Megapixel (3840 x 2160) | Maximum frame rate 10 fps at 8.0 MP, MJPEG 25 fps at 2.0 MP, |
| MJPEG | Compatibility |
| Interface USB 2.0 | Operating system Windows 10/11 |
| Supported image formats | (Windows) |
| BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, | JP2, JPC, JPG, PGX, RAS, PNM |
| Supported video formats | (Windows) |
| WMV, FLV, SWF | Housing |
| Housing material Metal housing | Dimensions 130 mm (H) x 33 mm (D) |
| Weight 120 g | Features |
| Measurement Yes | Calibration Yes |
| Microtouch sensor Yes | Information |
| Package contents N3C-C (Close Cap) N3C-D (Diffuser Cap) N3CD2 (Opal Diffuser Cap) N3C-E (Extended Open | Cap) N3C-L (Long Cap) N3C-O (Open Cap) N3CS (Sidelight Cap) |
| Warranty information 2 years European warranty | Regulatory approval: CE, FCC, ROHS |
